Laser Scanner System
Specifications:
Model
SDL-SCS-002
SDL-SCS-003
Response time
0.2ms
Linearity
+-2 %
99.9%
scope
¡À20¡ã
Average working current
0.9A
Peak current
5A
Coil resistance
3¦¸¡À10%
Coil inductance
180¦ÌH ¡À10%
Onload optic
below 5mm light spot
Motor weight
80g
Maximum scanning angle (mechanical angle)
¡À15 degree
¡À20 degree-30
Working temperature
0¡æ¡«40¡æ
Usage

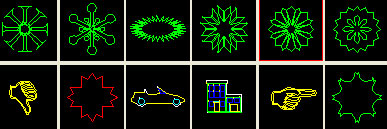

stage lighting, laser animation


Note:
See the Glossary and Technology for information about the terms used
In the front of the laser, we add an infrared filter. The residual IR part is less than 10-3. Please refer to the technology page for more information about the filter.
Other Sytles and custom designs are available. Contact us to discuss your needs.
